• Tow/haul mode selector, instrument panel-mounted
• Rear-wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 145 amps (Included with (C69) rear air conditioning.)
• Frame, ladder-type
• Suspension, front independent with coil springs and stabilizer bar (Standard and only available on CG13406, CG23406, CG33406 and CG33706 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare (Standard on CG23406, CG33406, and CG33706 models only.)
• Tires, front LT245/75R16E all-season, blackwall (Standard on CG23406, CG33406 and CG33706 models.)
• Tires, rear LT245/75R16E all-season, blackwall (Standard on CG23406, CG33406 and CG33706 models.)
• Tire, spare LT245/75R16E all-season, blackwall (Standard on CG23406, CG33406 and CG33706 models.)
• Wheel trim, chrome center cap (Upgradeable to (P46) 4 - 17" x 7.5" (43.2 cm x 19.1 cm) aluminum uplevel wheels on CG13406 or CH13406 models.)
• Body, standard
• Bumpers, front and rear chrome with step-pad (Included with (ZR7) Chrome Appearance Package.)
• Grille, chrome with dual composite halogen headlamps (Included and only available with (ZR7) Chrome Appearance Package.)
• Headlamps, halogen
• Mirrors, outside manual, Black
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows
• Glass, swing-out rear cargo door windows
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash (Standard on CG23406, CG33406, and CG33706 models with 12- and 15- passenger seating. Not available with 8-passenger seating.)
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door, swing-out passenger-side, 60/40 split

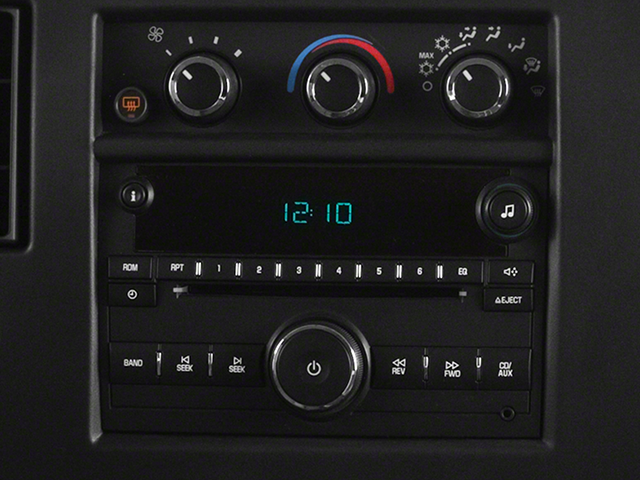

• Audio system, AM/FM stereo with seek-and-scan, digital clock and 2 front door speakers (Not available with (NP5) leather wrapped steering wheel.)

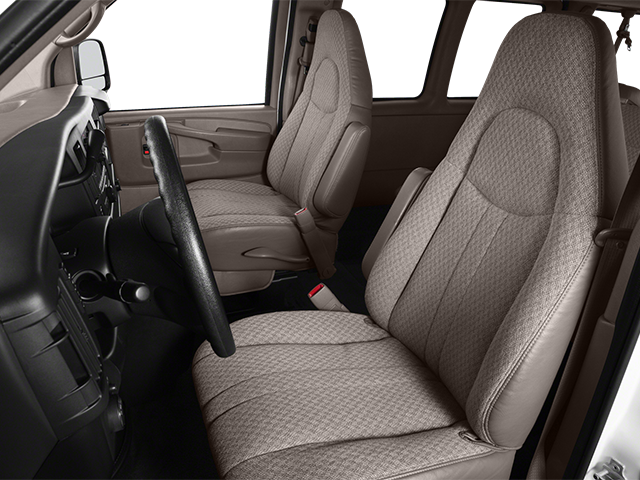

• Seats, front bucket with Custom Cloth trim head restraints and inboard armrests (Requires (**G) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with Custom Cloth trim. Head restraints are not available on rear bench seats.)

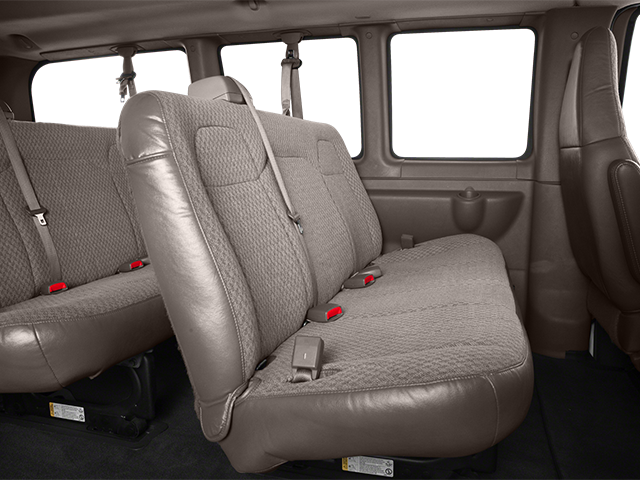

• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration (Standard on CG23406, CG33406, and CG33706 models only.)

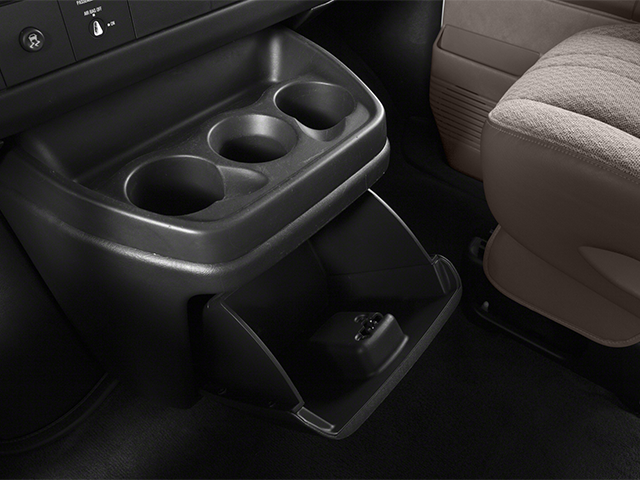

• Console, deluxe with swing-out storage bin
• Floor covering, full-floor color-keyed carpeting with front and rear rubberized vinyl floor mats

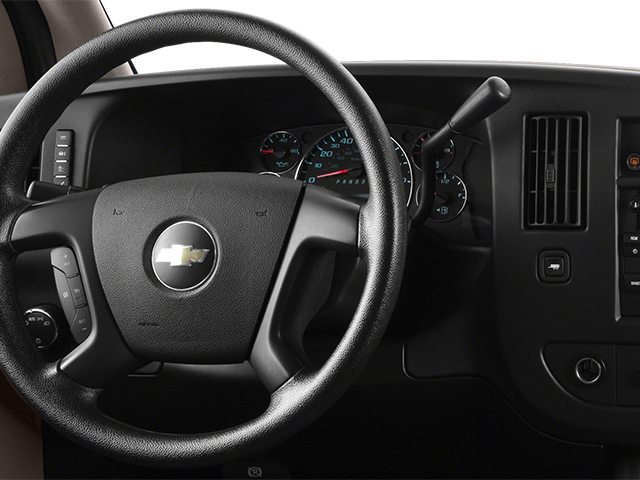

• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Compass, 8-point digital located in the Driver Information Center (Included and only available with (C69) rear air conditioning.)
• Convenience Package, power windows and door locks (Includes (AU3) power door locks and power windows.) (NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Convenience Package, Tilt-Wheel and (K34) cruise control

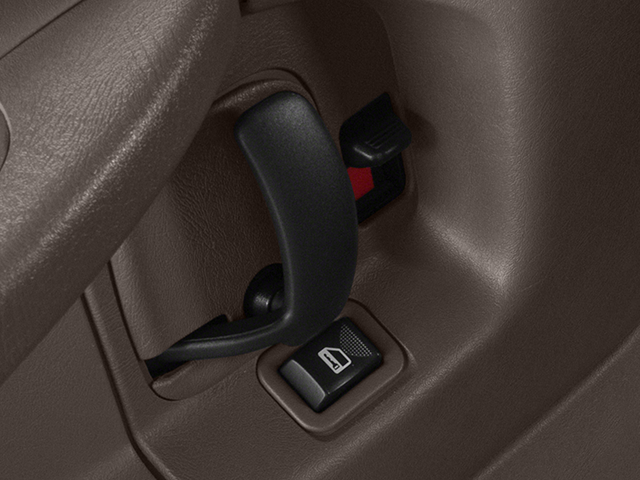

• Door locks, power with lock-out protection (NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Remote Keyless Entry with 2 transmitters and remote panic button
• Cruise control (Included and only available with (ZQ3) Convenience Package, tilt-wheel and cruise control.)
• Theft-deterrent system, vehicle, PASS-Key III
• Air conditioning, single-zone manual
• Air conditioning, rear
• Heater, rear auxiliary
• Defogger, front and side windows
• Mirror, inside rearview manual day/night
• Headliner, cloth
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Assist handle, front passenger
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches
• Lighting, auxiliary with reading and underhood lights

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch for models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head/side-curtain provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows when equipped with 12- and 15-passenger seating. (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation (Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions.)
• Child seat anchors all three passenger rear seats have four anchors and two tethers
• Tire Pressure Monitoring System (does not apply to spare tires)

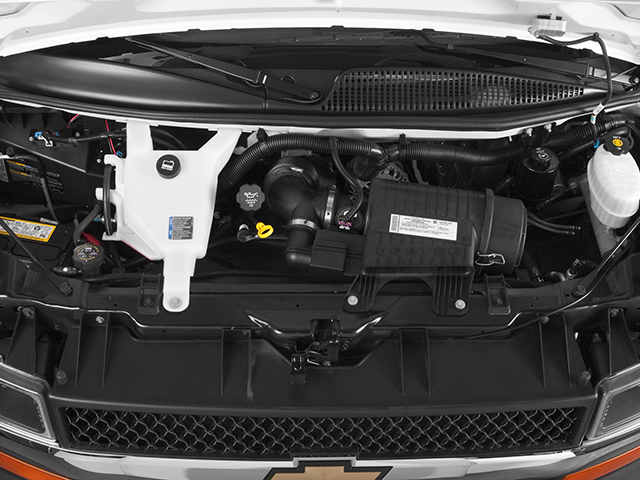

ENGINE, VORTEC 4.8L V8 SFI

• (285 hp [212.5 kW] @ 5400 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) Includes external engine oil cooler.

• Preferred Equipment Group 1LT
• 3.42 Rear Axle Ratio
• 16" x 6.5" Steel Wheels
• Wheel Trim w/Chrome Center Caps
• Reclining Front Bucket Seats w/Inboard Armrests
• Custom Cloth Seat Trim
• 12-Passenger Seating (2-3-3-4 Seating Config)
• 15-Passenger Seating (2-3-3-3-4 Seating Config)
• 6-Way Power Driver Seat Adjuster
• AM/FM Stereo w/Seek & Scan
• AM/FM Stereo w/CD Player/Seek & Scan
• Deluxe Console
• Electric Rear-Window Defogger
• Full-Floor Color-Keyed Carpeting
• Remote Keyless Entry
• Smoker's Package
• Front & Rear Chrome Bumpers w/Step-Pad
• Chrome Appearance Package
• Sliding Passenger-Side Door
• Power-Adjustable Black Outside Heated Mirrors
• Heavy-Duty Trailering Equipment
• Trailer Wiring w/7-Pin Sealed Connector
• Rear Auxiliary Heater
• Rear Air
• Driver & Front Passenger Padded Visors
• Dual Composite Halogen Headlamps
• Cruise Control
• 145 Amp Alternator
• Reading Lights
• Tilt Steering Wheel
• Auxiliary Lighting
• 8-Point Digital Compass
• Underhood Lights
• Chrome Grille
• Convenience Package
• 4-Wheel Disc Brakes
• Driver's Seat Mounted Armrest
• Compass
• 4th-Row Bench Seat
• 2 Speakers
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Speed control
• Rear reading lights
• Rear air conditioning
• Power windows
• Power steering
• Passenger vanity mirror
• Passenger seat mounted armrest
• Passenger door bin
• Passenger cancellable airbag
• Overhead airbag
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Emergency communication system
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• AM/FM radio
• ABS brakes
• 3rd row seats: bench
• Voltmeter
• Tachometer
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning

• Vehicle
• Rear Door Type: Panel
• Mileage
• Fuel Economy Est-Combined (MPG): 13
• EPA Fuel Economy Est - City (MPG): 11
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4600
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3331
• Curb Weight - Rear (lbs): 3075
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 960
• Maximum Trailering Capacity (lbs): 9300
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Drive
• Spring Capacity - Front (lbs): 4600
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 3042
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 155.00
• Length, Overall w/rear bumper (in): 244.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): 82.90
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): 49.4
• Ground to Top of Load Floor (in): 30.10
• Ground Clearance, Front (in): 8.80
• Ground Clearance, Rear (in): 7.70
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 19.40
• Step Up Height - Side (in): 19.80
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 173.60
• Cargo Area Length @ Floor to Seat 1 (in): 146.00
• Cargo Area Length @ Floor to Seat 2 (in): 109.0
• Cargo Area Length @ Floor to Seat 3 (in): 77.0
• Cargo Area Length @ Floor to Seat 4 (in): 45.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.40
• Cargo Box (Area) Height (in): 51.80
• Cargo Volume to Seat 1 (ft³): 252.8
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): 127.2
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 39.80
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Second Head Room (in): 38.40
• Second Leg Room (in): 36.30
• Second Shoulder Room (in): 68.60
• Second Hip Room (in): 65.60
• Third Head Room (in): 38.50
• Third Leg Room (in): 36.60
• Third Shoulder Room (in): 65.80
• Third Hip Room (in): 63.30
• Fourth Head Room (in): 37.60
• Fourth Leg Room (in): 36.60
• Fourth Shoulder Room (in): 69.10
• Fourth Hip Room (in): 65.70
• Summary
• Vehicle Name: Chevrolet Express Passenger
• Body Style: Passenger Van
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 14.1
