Ford F-750SD
1
/
8

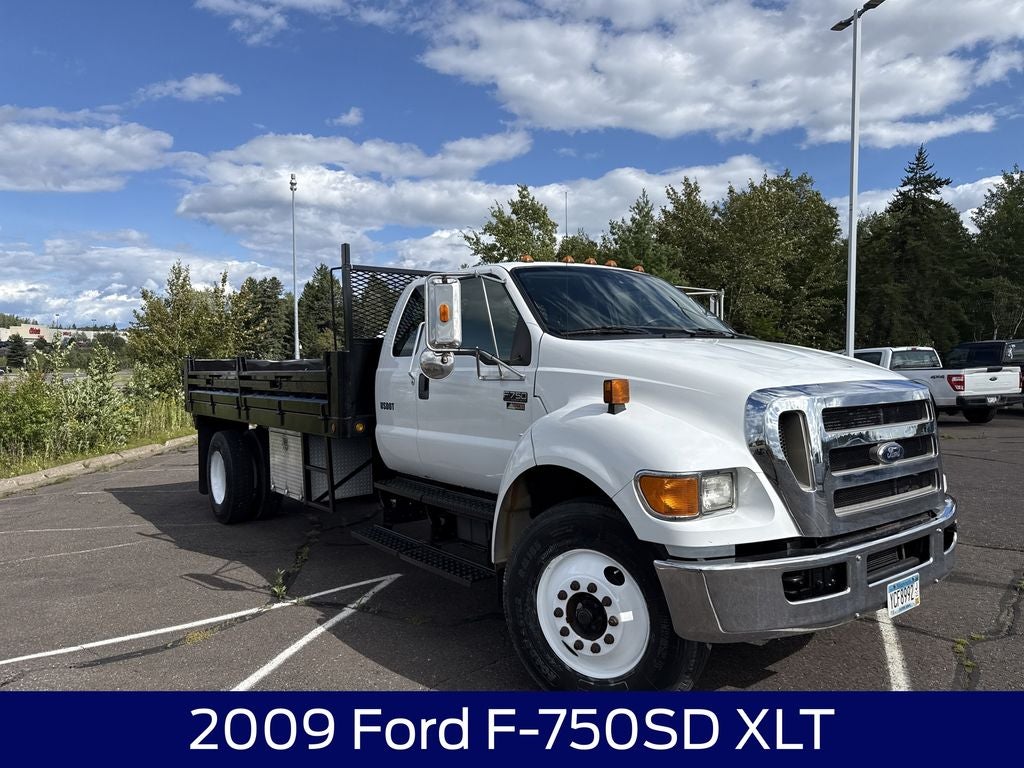

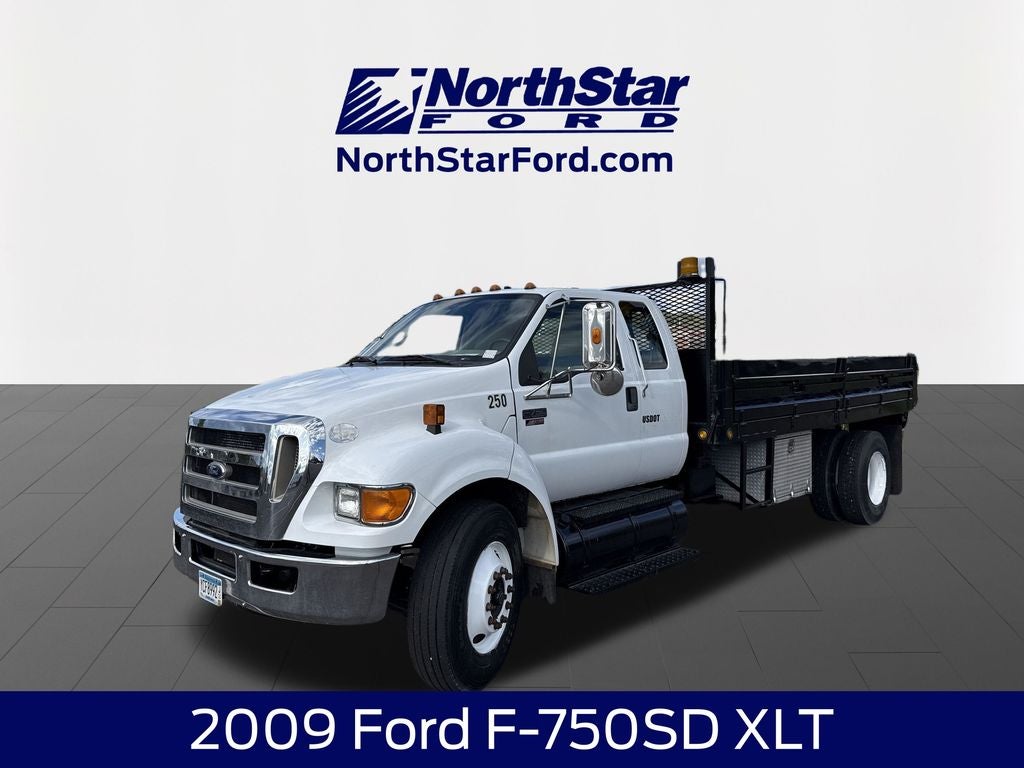

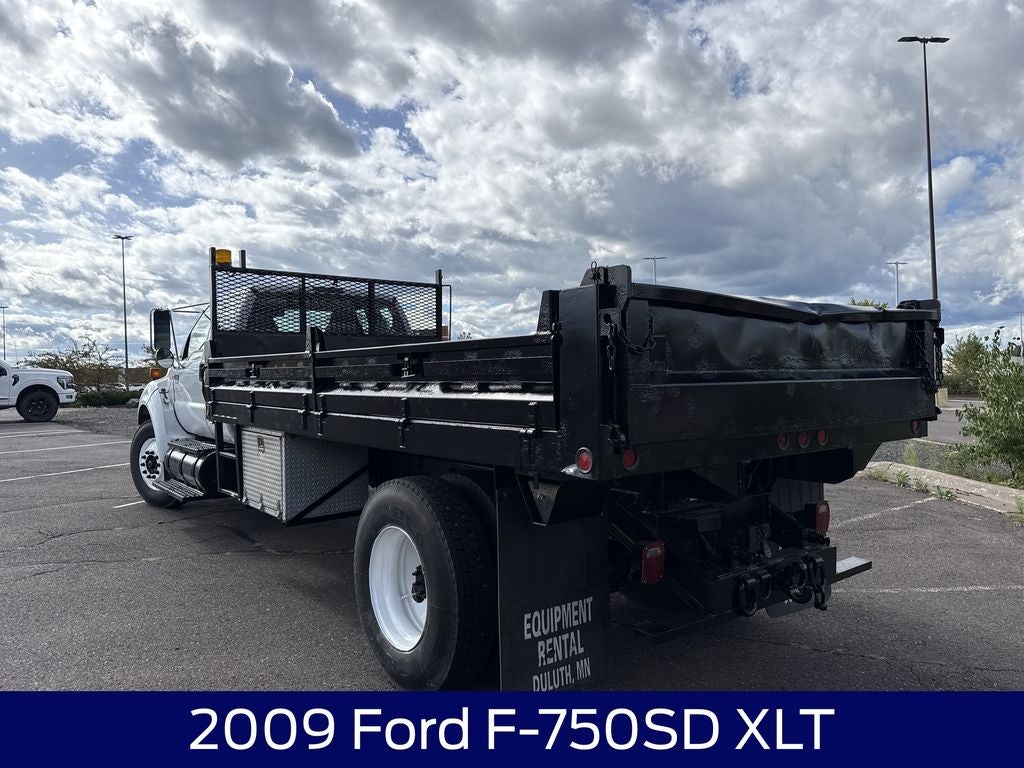

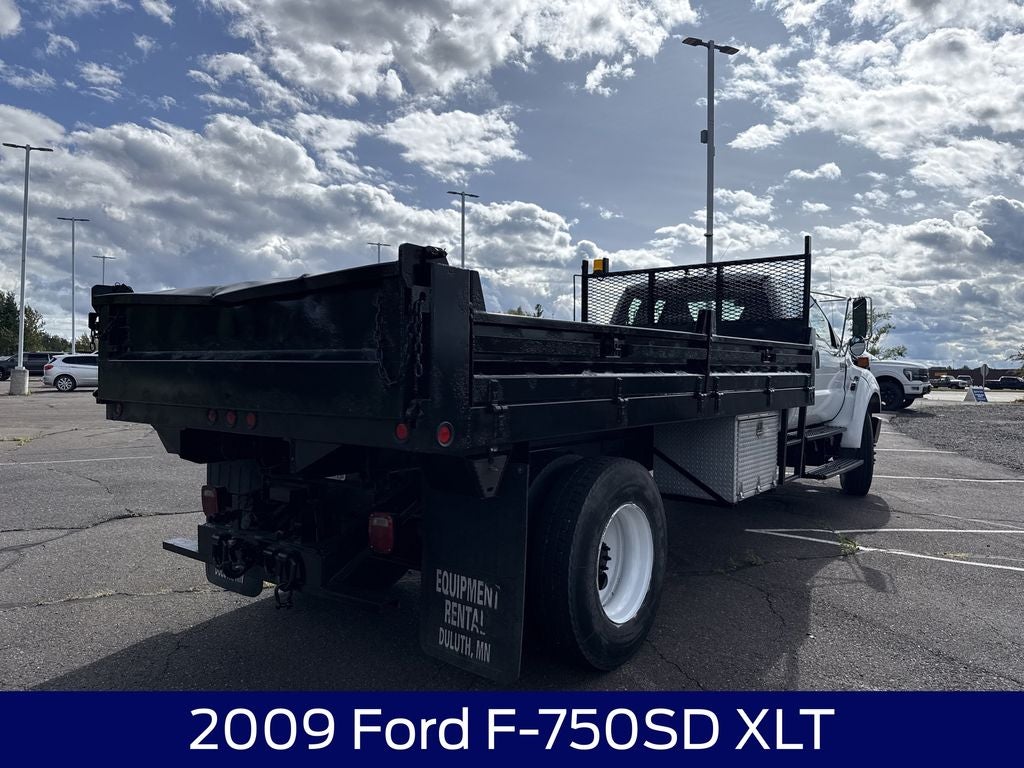

2009 Ford F-750SD DRW
Visit our Store
- NorthStar Ford MN
-
1420 Miller Trunk Hwy
Duluth, MN 55811
- Sales: 218-328-2111
- Service:: 218-380-6001
- Parts: 888-706-9286
Vehicle Information
VIN:
3FRXX75G89V188363
Stock #:
PV188363
Model Code:
X75
-
Body Style Medium Duty Chassis Cab -
Exterior Color White
-
Mileage 46,348
-
Engine 6 Cyl - 6.7 L -
Transmission 5-Speed Automatic -
Fuel Type Diesel
Dealer Comments
White 2009 Ford F-750SD DRW RWD 5-Speed Automatic 6.7L I6 Diesel Turbocharged OHV 24V Federal 325hp ABS brakes, Air Conditioning, AM/FM radio, Bumpers: chrome, Driver's Seat Mounted Armrest, Dual rear wheels, Passenger vanity mirror, Power steering, Speed control, Tachometer, Tilt steering wheel, Variably intermittent wipers, Voltmeter.
Recent Arrival!
Recent Arrival!
Eligible Benefits
All Features
- Donaldson single element air cleaner-inc: restriction indicator
- Borg Warner SA75 viscous screw-on type fan clutch cooler
- Fleetguard FS19557 fuel & water separator w/electric type heater & primer pump
- 717 sq in cross-flow aluminum radiator w/313 sq in charge air cooler
- 12-volt Delco Remy 29T starting motor
- Spicer SPL100 driveshaft
- Dual 625 CCA 12-volt Motorcraft batteries RH under cab step
- 12-volt, 130-amp Leece-Neville brush-type pad mounted alternator
- Rear wheel drive
- 15.14 sm, 80000 psi straight C channel high strength low alloy steel frame
- 10000lb (I-100SG) I-beam front axle-inc: Ross TAS-66 pwr steering
- 10000lb parabolic taper-leaf front springs-inc: double acting shock absorbers
- 21000lb Spicer 21060S single reduction single-speed rear axle w/190 wheel ends
- 23500lb vari-rate multi-leaf rear springs-inc: 4500lb aux rubber springs
- 11R22.5H (16PR) AH12 Hankook radial front tires
- 11R22.5H (16PR) DL01 Hankook radial rear tires
- 22.5 x 7.5 10-hole hub piloted steel disc front & rear wheels painted white w/(5) hand holes
- Front Stemco wheel seals
- Rear Stemco Discover HNBR wheel seals
- Front & rear hydraulic disc brakes w/Quadraulic split system, 4-channel anti-lock brakes
- DDSA type rear axle mounted 12" x 3" parking brake w/Orscheln control
- Gold Eagle cold weather anti-gel diesel fuel additive
- RH frame mounted single horizontal aftertreatment device w/horizontal tail pipe
- Body builder wiring at back of cab at frame
- SAE blade type fuses
- Conventional steel Ford cab
- Frame mounted tilting hood & front fender assembly w/torsion assist-inc: integral noise, inner splash shields & flash guards
- Full width chrome plated steel front bumper (0.1875" thick)
- Chrome grille-inc: chrome headlight bezels
- Laminated windshield w/solar tint on all windows
- Rectangular halogen sealed beam headlights-inc: front side marker lights w/reflectors
- 5-roof marker & clearance lights
- (2) tail lights w/integral stop, turn, backup & license plate
- Dual bright head west coast style 7.5" x 16.5" side-view mirrors
- Exterior rear door mounted assist handle
- Two-speed intermittent windshield wipers w/washers
- Fixed rear window
- G-grain vinyl 40/70 high-back driver captain chair w/integral headrest-inc: dumping & reclining back, arm rests
- G-grain vinyl (2) person passenger bench seat w/integral outboard headrest -inc: folding back
- G-grain vinyl full width rear bench-inc: convert to load floor flip-up feature
- Color-coordinated door trim w/hard arm rest, grab handle & reflector
- Black Maslite-type full floor covering
- Color-coordinated scuff plates
- Black two-spoke 17.5" PVC steering wheel
- Tilt steering column
- Color-coordinated instrument panel
- Instrumentation-inc: speedometer, trip meter, volt meter, oil pressure, coolant temp, fuel gauge, tachometer, indicator lights
- Multifunction self canceling turn signal switch
- Cruise control
- AM/FM stereo-inc: clock, (2) speakers
- Manual air conditioning-inc: integral heater & defroster
- Cigar lighter & ash tray
- Aux pwr point
- Cup holder
- Interior A-pillar mounted grab handle
- Color-coordinated molded cloth headliner
- RH & LH color-coordinated coat hooks
- Door activated dome lamp
- Dual cloth covered sunvisors w/passenger mirror
- Front & rear hydraulic disc brakes w/Quadraulic split system, 4-channel anti-lock brakes
- Safety belts w/adjustable D-rings
- Emergency flasher
- Dual electric horns
6.7L CUMMINS ISB 200 I6 DIESEL ENGINE 325 HP @ 2600 RPM, 750 LB-FT TORQUE @ 1800 RPM
- 2600 RPM governed speed
- 325 peak HP (max)
- Delco-Remy America Inc. 38MT type 300 starter
- Borg Warner SA75 viscous screw fan clutch
- Donaldson air cleaner
- Fleetguard FS19557 fuel & water separator w/electric heater & primer pump
- Dual rear wheels
- Bumpers: chrome
- Tilt steering wheel
- Voltmeter
- Passenger vanity mirror
- Tachometer
- Air Conditioning
- Power steering
- AM/FM radio
- ABS brakes
- Driver's Seat Mounted Armrest
- Speed control
- Variably intermittent wipers
- Front Frame Rating: - TBD -
- Cold Cranking Amps @ 0° F (Primary): 625
- Cold Cranking Amps @ 0° F (2nd): 625
- Maximum Alternator Capacity (amps): 130
- Maximum Alternator Watts: - TBD -
- Total Cooling System Capacity (qts): 30.0
- Curb Weight - Front (lbs): 6105
- Curb Weight - Rear (lbs): 3412
- Gross Vehicle Weight Rating Cap (lbs): 30000
- Suspension Type - Front: Taper-Leaf
- Suspension Type - Rear: Multi-Leaf
- Axle Type - Front: I-Beam
- Shock Absorber Diameter - Front (mm): 1.38
- Brake Type: Air
- Brake Type: Hydraulic
- Brake ABS System: 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 15.0 x 1.4
- Rear Brake Rotor Diam x Thickness (in): 15.0 x 1.4
- Drum - Front (Yes or ): Yes
- Front Drum Diam x Width (in): 15.0 x 4.0
- Drum - Rear (Yes or ): Yes
- Rear Drum Diam x Width (in): 16.5 x 7.0
- Spare Tire Order Code: - TBD -
- Front Tire Size: - TBD -
- Rear Tire Size: - TBD -
- Spare Tire Size: - TBD -
- Front Tire Capacity (lbs): - TBD -
- Rear Tire Capacity (lbs): - TBD -
- Spare Tire Capacity (lbs): - TBD -
- Revolutions/Mile @ 45 mph - Front: - TBD -
- Revolutions/Mile @ 45 mph - Rear: - TBD -
- Revolutions/Mile @ 45 mph - Spare: - TBD -
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Front Wheel Offset (mm): - TBD -
- Rear Wheel Offset (mm): - TBD -
- # of Bolt Holes - Front: 10
- # of Bolt Holes - Rear: 10
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Front Wheel Description Cont.: Hub Pilot Mount
- Rear Wheel Description Cont.: Hub Pilot Mount
- Front Bolt Pattern: 10 Hole w/285.75mm Bolt Circle
- Rear Bolt Pattern: 10 Hole w/285.75mm Bolt Circle
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 20.4
- Steering Ratio (:1), At Lock: Variable
- Turning Diameter - Curb to Curb (ft): 23.5
- Turning Diameter - Wall to Wall (ft): 24.9
- Frame Type: Ladder
- Fuel Tank Location: LH
- Wheelbase (in): 167
- Length, Overall w/o rear bumper (in): 245.3
- Width, Max w/o mirrors (in): 96.7
- Height, Overall (in): 94.6
- Overhang, Front (in): 39.4
- Overhang, Rear w/o bumper (in): 39.0
- Front Bumper to Back of Cab (in): 134.4
- Cab to Axle (in): 71.9
- Cab to End of Frame (in): 110.9
- Ground to Top of Frame (in): 40.4
- Frame Width, Rear (in): 34.0
- Ground Clearance, Front (in): - TBD -
- Ground Clearance, Rear (in): - TBD -
- Body Length Default Value (ft): 0
- Passenger Capacity: 6
- Front Head Room (in): 41.5
- Front Leg Room (in): 41.2
- Front Shoulder Room (in): 68.0
- Front Hip Room (in): 67.4
- Second Head Room (in): 38.5
- Second Leg Room (in): 31.9
- Second Shoulder Room (in): 68.0
- Second Hip Room (in): 67.3
- Vehicle Name: Ford Super Duty F-750 Straight Frame
- Body Style: Medium Duty Chassis Cab
- Body Code: X75
- Driver Ratio: .75
- Torque @ Clutch Engage (ft-lbs): - TBD -
- Static Loaded Radius (in): - TBD -
- Max Speed For Gradeability: - TBD -
